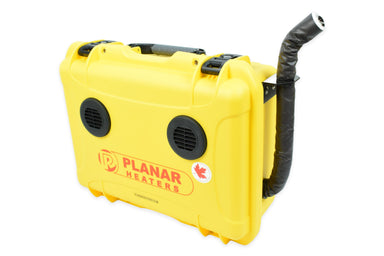

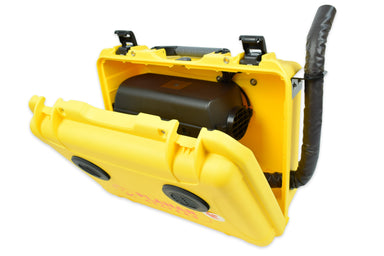

Portable Diesel Air Heater Planar 4D – 12V is a 4 kw self-contained heater that comes in a crushproof rain-resistant case. Runs on diesel or kerosene and 12v DC. Equipped with a silencer, air intake filter, and remote wired controller.
Burns just 3-4 litres of fuel for 8 hours.
Operates at high altitudes up to 8,200 ft.
For heating campers, vans, camp tents, motorhomes, ice-fishing huts, and up to 30 ft. boats.
Take it with you when you go winter camping, hunting, and ice fishing. Anywhere you need instant dry heat!

Refer to Operation Manual for operating procedures and safety precautions.

TECHNICAL DETAILS:

Heat Output:	1.0 – 4.0 kw / 3,400-13,600 btu
Fuel Consumption:	0.12-0.51 l/h / 0.03-0.14 gal/h
Nominal Supply Voltage:	12V
Power Consumption; W (A):	10-57 w (0.8-4.75 A)
Airflow Rate:	70-168 m³/h
Weight:	15 kg. / 33 lb.
Package L x D x H:	635 x 483 x 483 mm. / 25 x 19 x 19 in
Operating Modes:	Power

Additional information

Weight	25 kg
Dimensions	70 × 67 × 67 cm
High Temp. Heat Ducting*	5 Feet, 10 Feet
Choose a Colour	Yellow, Military Green

Manual and Certificates

Operation Manual (English)

Download Installation Manual Autoterm/Planar-EN-v06.2023

Download Repair Manual Planar-EN-v11.2022

Download Spare Parts and BOM Planar 44D-EN v10.2022

Operation Manual for Control Panel PU-5
