Discover 100ah Lithium Battery DLB-G24-12V

Sold out
$959.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

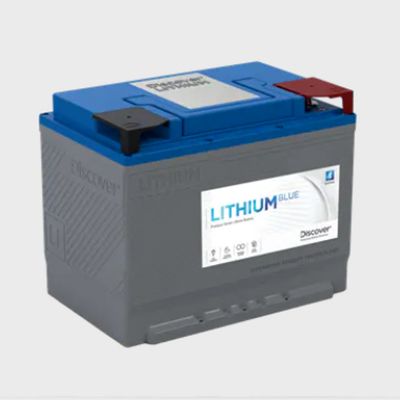

LITHIUM BLUE Battery

Discover®LITHIUM BLUE LiFePO4 Premium Series batteries offer BMS controlled safety, long life, lightning fast charging performance and real-time Bluetooth access to battery State of Charge, voltage, current, temperature status. LITHIUM BLUE batteries reflect Discover’s Design for Excellence philosophy, incorporating suitcase style carrying handles, terminal protection and field serviceable fuses. LITHIUM BLUE batteries are safe, easily to install and parallel for more capacity.

MECHANICAL SPECIFICATIONS
Industry Reference BCI: Low G24R DIN: Tall H6 JIS: D26L
Length A (in/mm) 10.3 262
Width B (in/mm) 6.9 175
Height C (in/mm) 8.3 210
Total Height D (in/mm) 8.3 210
Weight (lbs/kgs) 25.3 11.5
Terminal* ST 5/16
Cell(s) Prismatic 4S1P
Case Material UL94-VO PBT/PC
IP Rating 67
Electrolyte LiFePO4

*TERMINAL TORQUE: 8 to 10 Nm (5.9 to 7.4 ft-lb). DO NOT EXCEED 10 Nm (7.4 ft-lb)


FEATURES

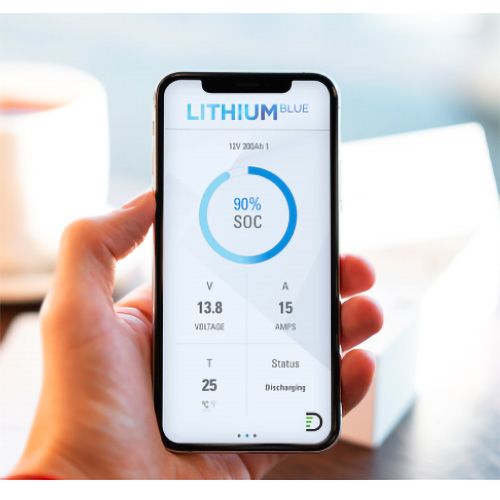

BLUETOOTH APP

  • State of Charge
  • Voltage / Current
  • Temperature ˚F/˚C

HIGH-CURRENT BMS

  • Field replaceable fuse protection
BENEFITS

ENHANCED RUNTIME

  • Double the high-current runtime of lead-acid battery
  • Up to 100% usable capacity
  • Up to 100% Depth of Discharge

EXTENDED SERVICE LIFE

  • 10x the life of lead-acid battery (BCI-06)
  • Unlimited Partial State of Charge cycles
  • Energy throughput warranty

FAST CHARGING

  • Up to 5x faster than new lead-acid batteries
  • Up to 10x faster than aged lead-acid batteries
  • 2x faster than C/2 rated lithium batteries
  • Opportunity charge at 1C rate anytime, regardless of SoC

SURGE POWER

  • Surge power for inverter chargers
  • Up to 3C peak power discharge rate
  • Up to 1C continuous discharge rate

HIGH-EFFICIENCY

  • Up to 50% more energy efficient than a lead-acid battery
  • Up to 98% round-trip efficiency

PARALLEL POWER

  • Easy to parallel more capacity
  • Linear scaling of charge, discharge and peak capacity

QUICK INSTALL

  • Fast installation. No special tools
  • Drop-in lead-acid replacement

RELIABLE AND SAFE

  • LiFePO4 is safe
  • Maintenance-free
  • UL94 V0 flame retardant case and cover
  • IP 67 rated

CERTIFIED QUALITY

Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.

CERTIFICATION STANDARDS

  • CE
  • UN 38.3
ELECTRICAL SPECIFICATIONS
Open Circuit Voltage (V) 12.8
Charge Voltage (Bulk Vdc) 13.8 - 14.2
Max Absorption Voltage (U1 Vdc) 13.8
Float Voltage (U2 Vdc) 13.6
BMS Max. Voltage protection (Vdc) 14.6 (Approximately)
Suggested Low Voltage Cutoff (Vdc) * 12
BMS Min. Voltage protection (Vdc) 10.0 (Approximately)
Max. Continuous Charge
Current (I Max. Adc)
100
Min. Finishing Charge
Current (I Min. Adc)
2%-3% C1 / Min. 200ma
Max Continuous
Discharge Current (Adc)
100
Max. Peak Current (Adc) 250 A RMS (2 sec)
Self Discharge (25°C / 77°F) < 3% per month
Charge Temperature Min: 0°C (32°F) | Max: 55°C (131°F)
Discharge Temperature Min: -20°C (-4°F) | Max: 60°C (140°F)
Storage Temperature Min: -10°C (14°F) | Max: 30°C (86°F)

Electrical Specifications at 25°C.

CAUTION: Extra considerations must be given to depths of discharge, operating voltages and currents when designing systems for use at maximum operating temperatures.

CAUTION: Do not exceed maximum voltage at the battery terminals (Bulk Vdc)
*NOTE: 98% of battery capacity is delivered above 3Vpc (12V, 24V, 36V and 48V models)
