Factor55 UltraHook

The world’s safest winch hook.

Featuring Industry first Closed System Shackle Mount hole machined into the body of the hook, safety latch retraction pocket resulting in a clear throat opening, integrated secondary safety latch locking feature-latch locking pin stored in the body of the UltraHook which can be removed and inserted in to the hook tip, locking the latch into place.

EPDM rubber pads for fairlead protection, titanium double shear pin, and a finger grip feature that promotes proper “Hook Up” orientation.

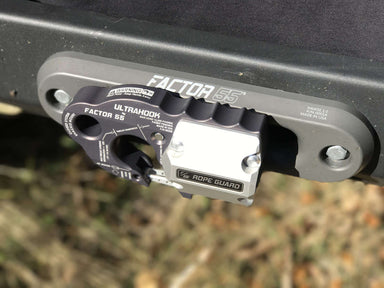

The first winch hook that can be stored against your fairlead protecting either your hawse or roller style fairlead from a metal to metal connection.

Made in USA

U.S. Utility Patent No. 9,388,025
Foreign Patents Pending

*LIMITED EDITION color options– Limited Edition Colors can be out of stock frequently. If you have any questions you can call 817-330-4466 for availability and pricing.

Weight	2 lbs
Package Size	7.5 × 5 × 2 in
Color	Gray, Red, Limited Edition Yellow, Limited Edition Orange, Limited Edition OD Green, Limited Edition Lime Green, Limited Edition Silver, Limited Edition Blue

The industry’s first winch hook with an integrated shackle pin mount
Two methods of use: conventional hook opening, or shackle mount
Shackle pin mount allows the safer practice of Closed System Winching
Finger grip feature promotes proper “Hook Up” orientation
Double locking safety clasp – lock the safety clasp with the included clevis pin
Latch lock clevis pin stored conveniently in hook body
Integrated EPDM rubber pads for fairlead surface protection
Max opening deformation clearly laser engraved
Lightweight – Precision CNC machined 7000 series Military Grade Aluminum
No rope splicing required – double shear pin design accepts rope/cable eyes
Designed for both steel cables and synthetic winch ropes
Foldable to stow rattle free against fairleads
Shackle pin mounting hole accepts ¾ shackle pins (.875” diameter)
For rope and cable diameters up to 3/8’’
Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
5/8” diameter 6AI-4V grade V titanium double shear pin
Max Rated Load: 16,000 pounds
Ultimate Strength – Hook Throat Opening: 31,000 pounds
Ultimate Strength – Shackle Pin Mount: 48,000 pounds
Weight: 32oz

MADE IN THE USA

Factor55

+Vendors

Factor55 UltraHook

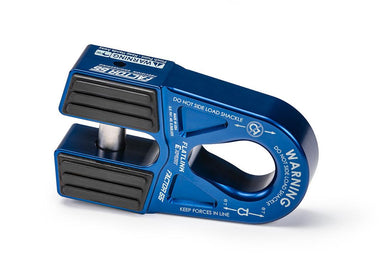

Factor55 Flatlink "E"
