COMEUP Slim 9.5rsi Trail Edition Winch
by COMEUP USA
Sold out
Original Price
$1,796.00
Current Price
$1,495.95

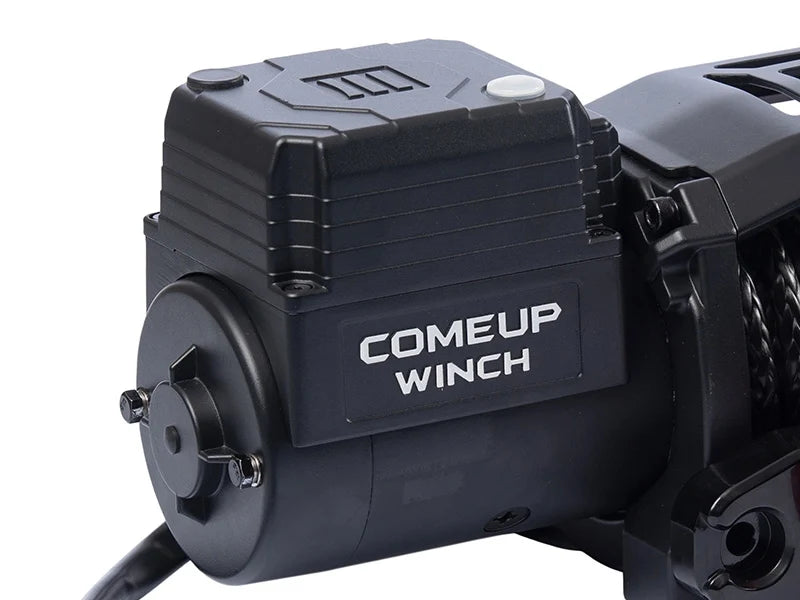

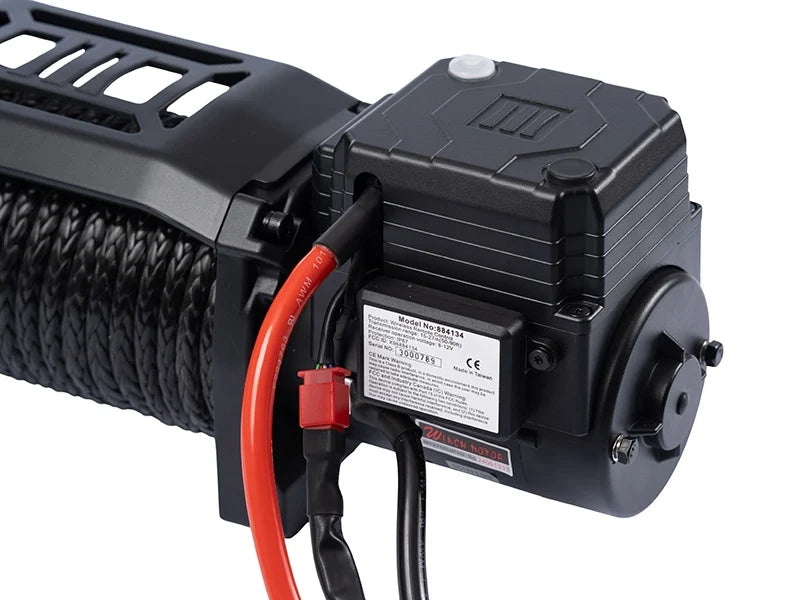

The Slim 9.5rsi Trail Edition is here. We engineered an integrated control box and motor, creating a single, radically compact unit. The result is a winch that disappears into your vehicle with a seamless, low-profile installation.

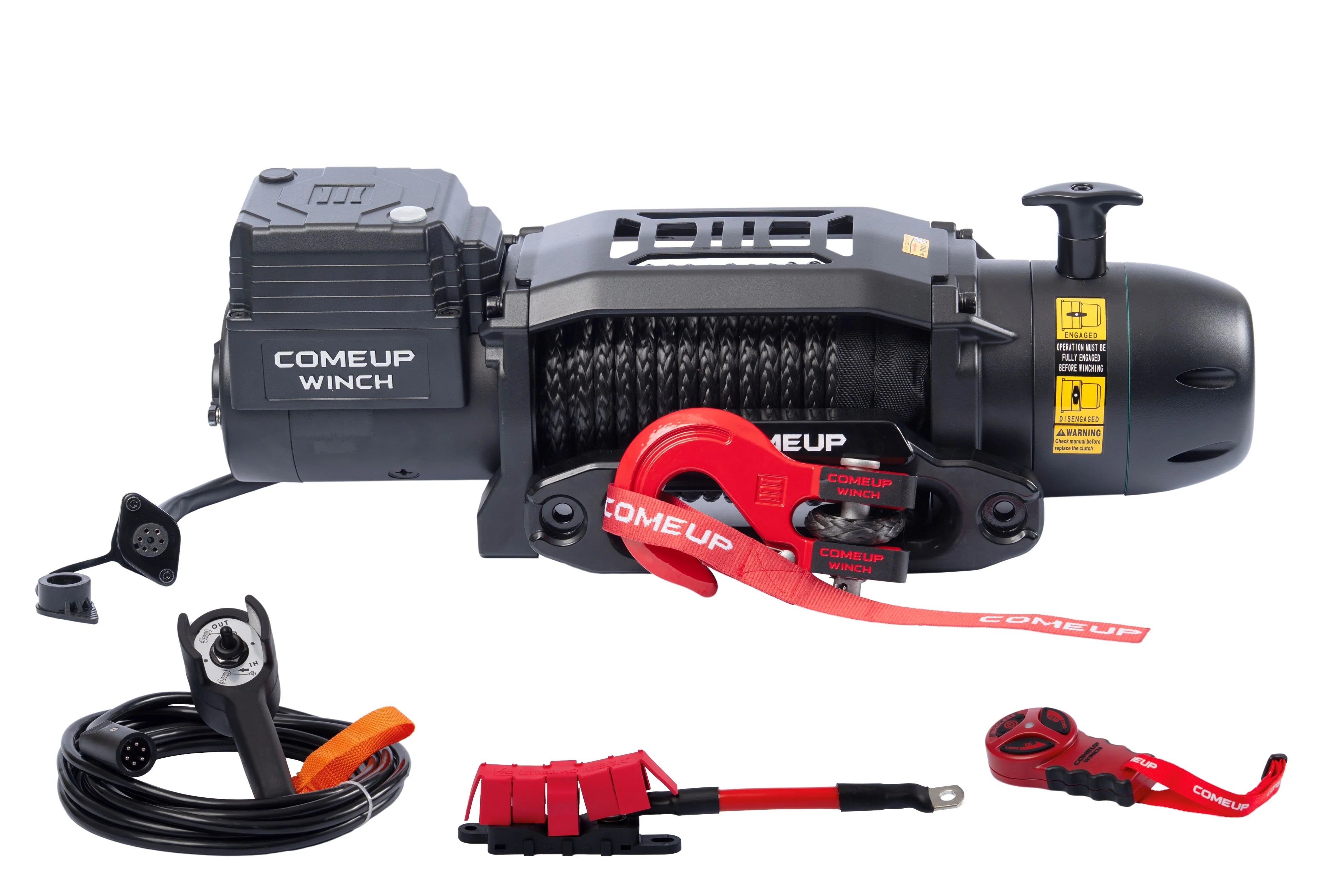

It’s not just how it looks. It’s how it works. Featuring the innovative BossHook M and a specialized fuse kit for a new level of protection and capability.
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 14.8 / 48.6 | 60 |
| 907 / 2,000 | 4.8 / 15.7 | 115 |
| 1,814 / 4,000 | 3.6 / 11.8 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.2 / 7.2 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,309 / 9,500 | 5.1 / 16.7 |
| 2nd | 3,472 / 7,655 | 11.7 / 38.4 |
| 3rd | 2,908 / 6,410 | 19.7 / 64.6 |
| 4th | 2,501 / 5,514 | 23.2 / 76 |
Specifications:
- Rated Line Pull 9,500 lbs (4,309 kg) single line
- Motor 5.0 hp / 3,730 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 159:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

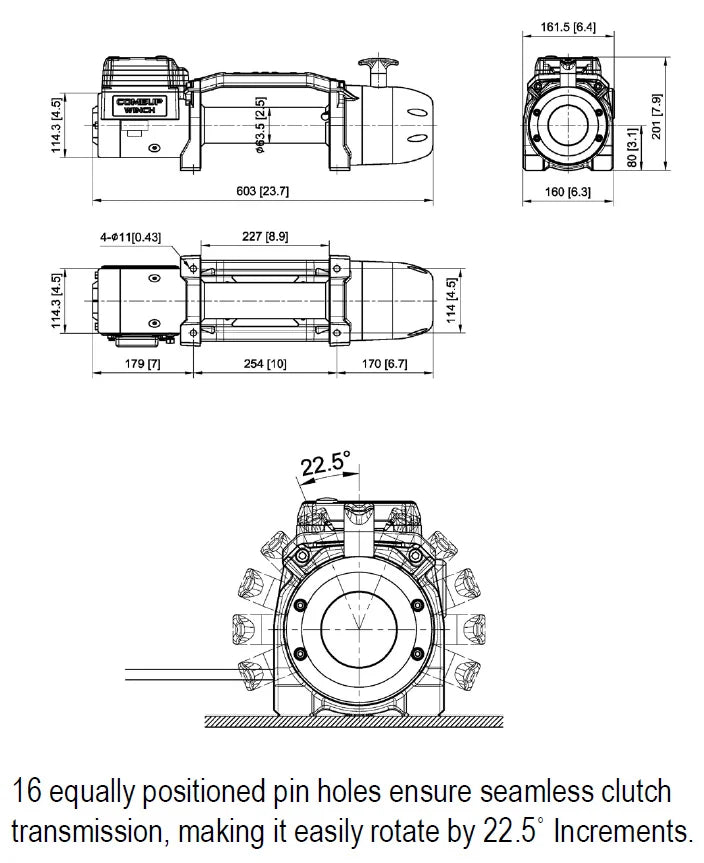

- Drum Size 2.5" x 8.9" (63.5 x 227 mm)
- Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Synthetic rope 3/8” x 76’ (10 mm x 23.2 m)
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
