COMEUP Solo 12.5rs Trail Edition Winch
by COMEUP USA
Sold out
Original Price
$2,378.00
Current Price
$1,980.95

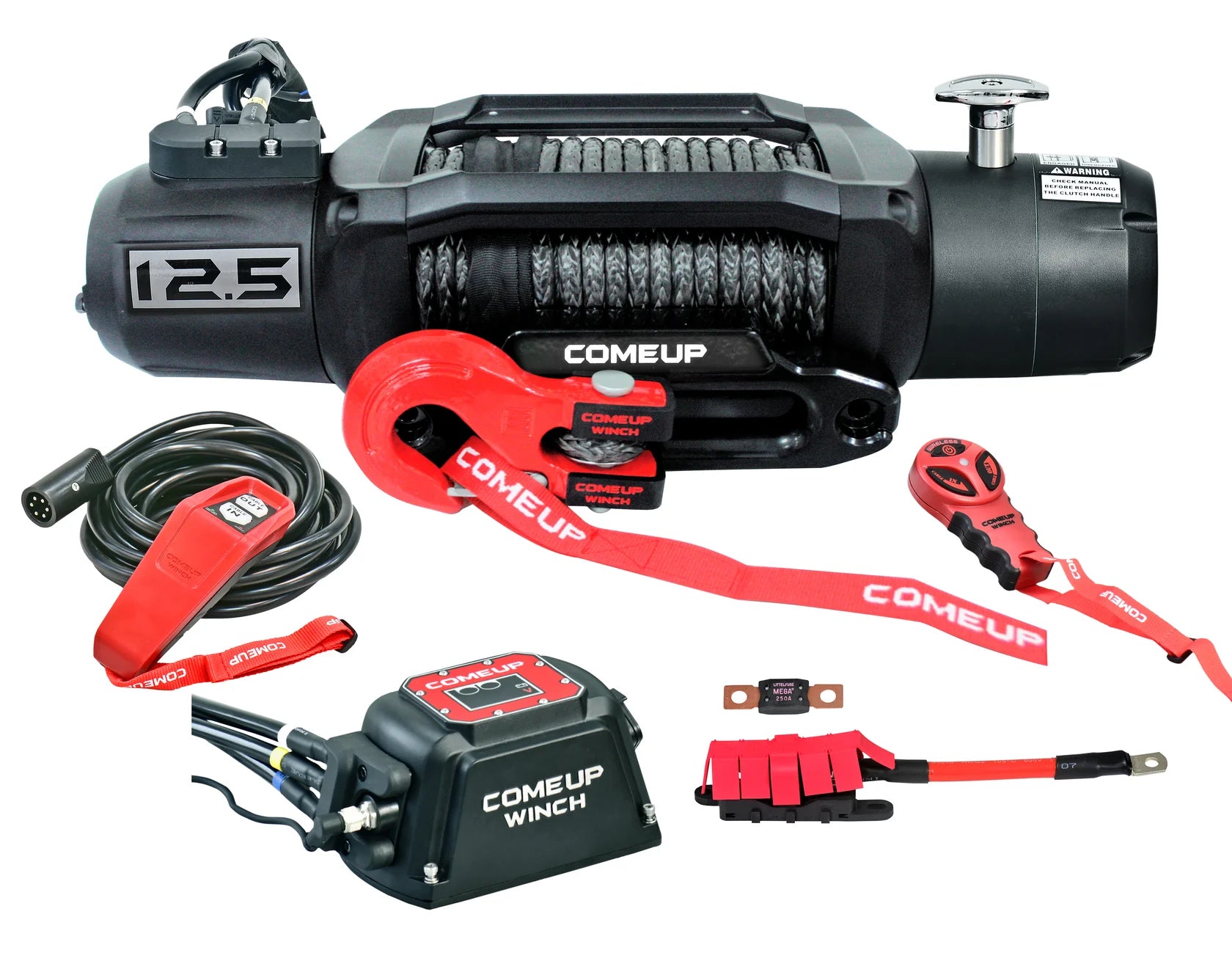

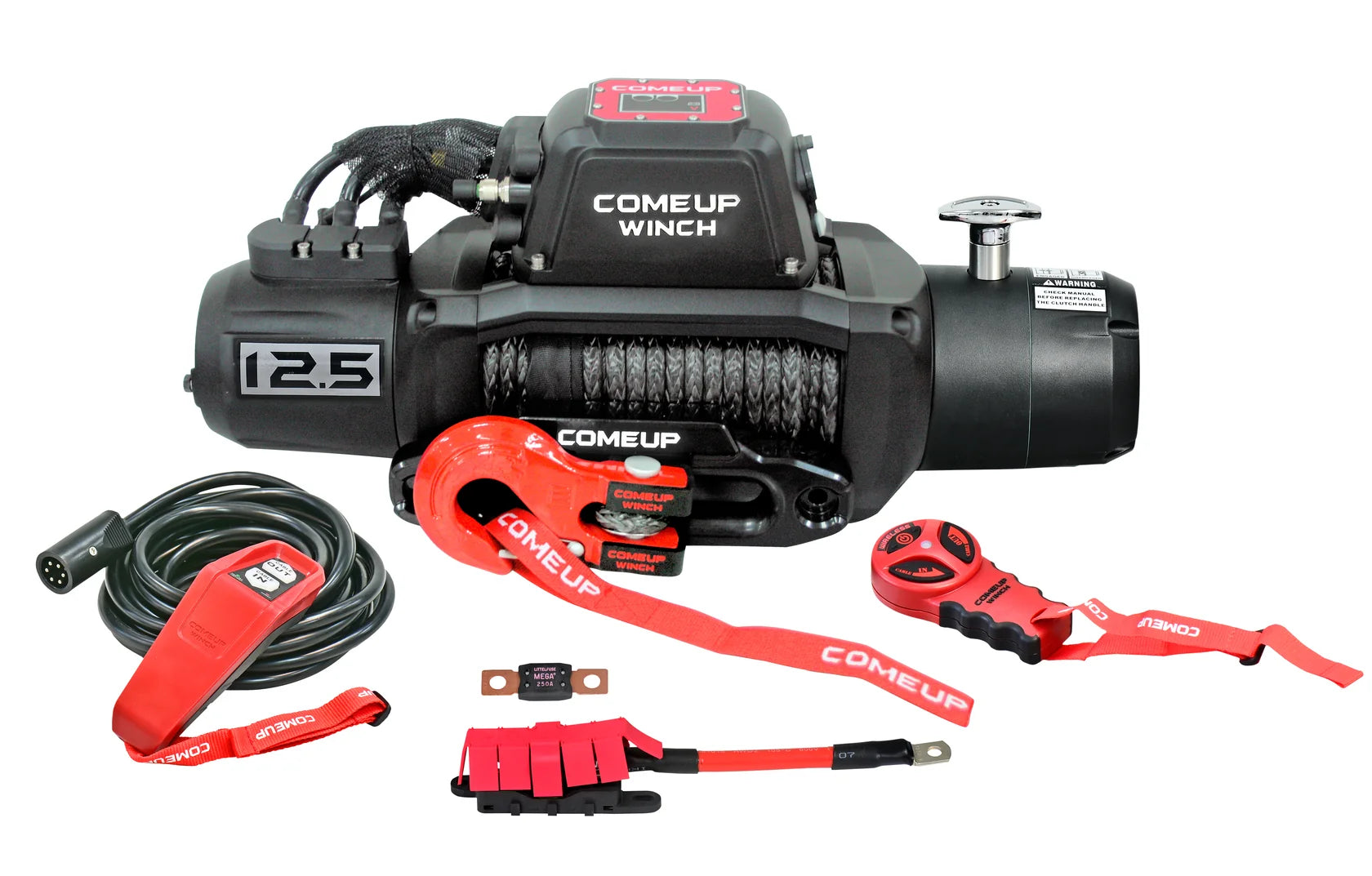

Introducing the COMEUP SOLO 12.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features including the innovative BossHook-M and a specialized winch fuse kit for superior functionality and protection.
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 7.7 / 25.3 | 45 |
| 907 / 2,000 | 3.4 / 11.2 | 75 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 230 |
| 3,629 / 8,000 | 1.7 / 5.6 | 300 |
| 5,670 / 12,500 | 0.9 / 3.0 | 470 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3,729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 21.0 / 69.0 |
Specifications:
- Rated Line Pull 12,500 lb (5,670 kg) single line
- Motor 5.0 hp / 3,730 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 225:1

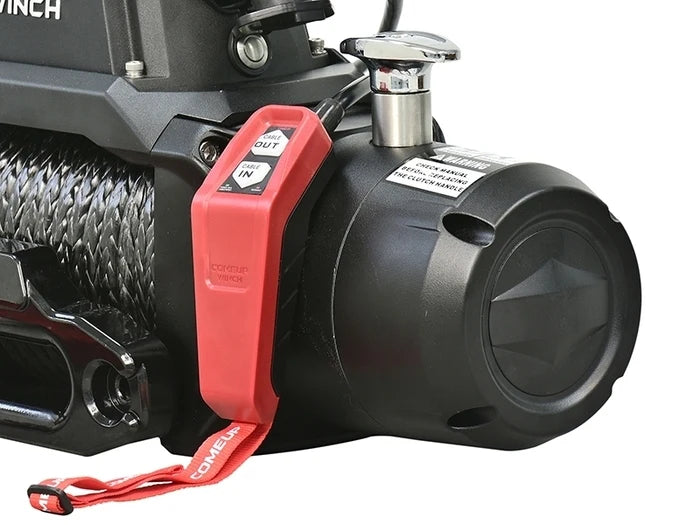

- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 2.5" x 9" (63.5 x 228 mm)

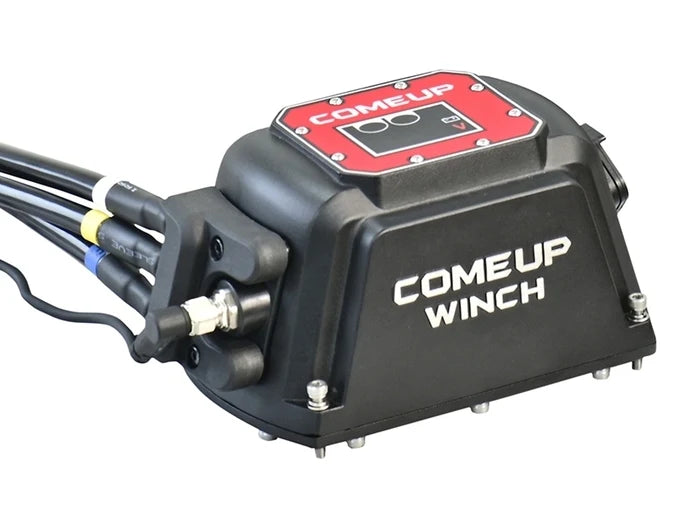

- Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
- Rope Type Synthetic Rope
- Rope Size 7/16” x 69’ (11 mm x 21 m)
- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
- Winch Weight 79.4 lb
- Gross Weigh 93.9 lbs

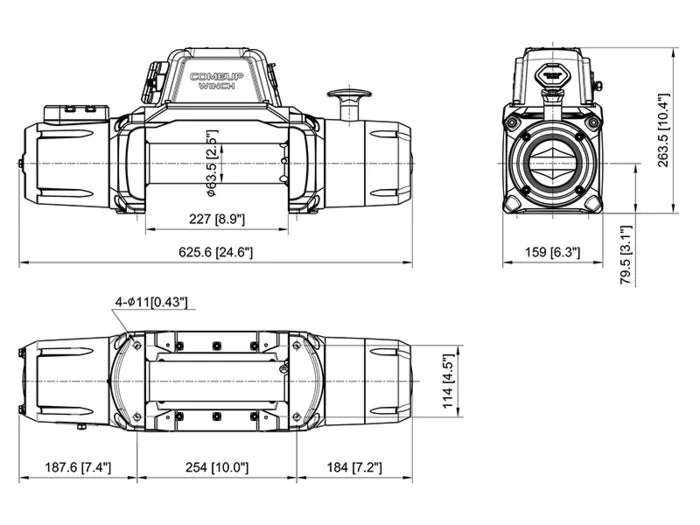

- Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
