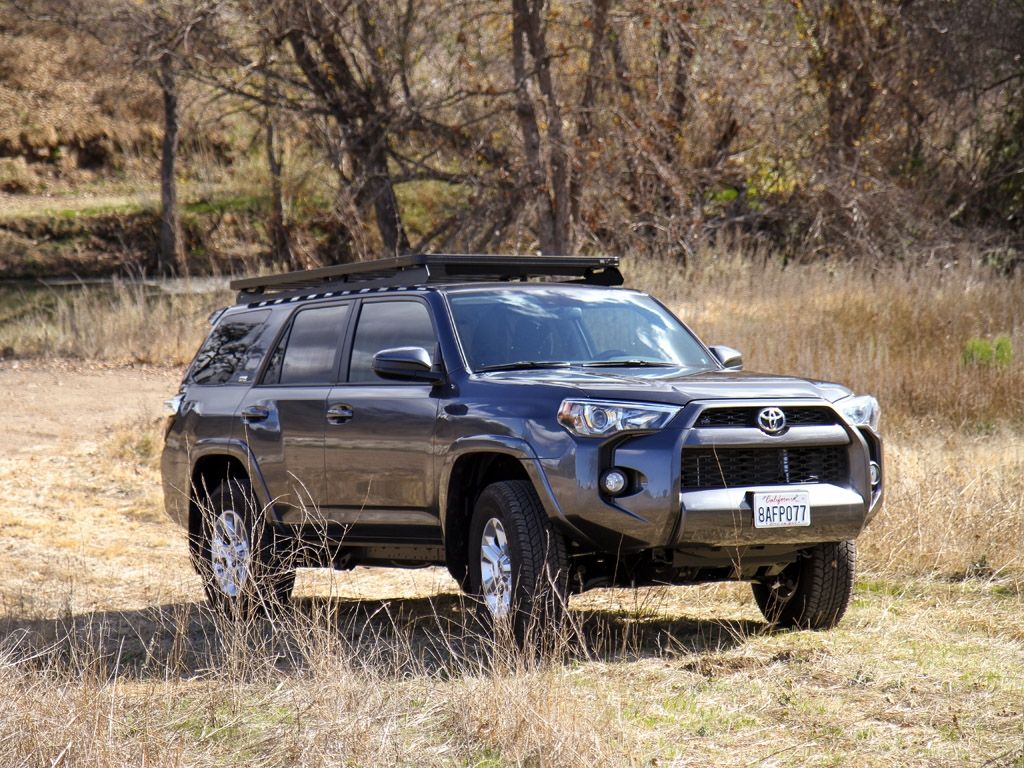

This 2166mm/85.3” long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and a set of Foot Rails to mount the Slimline II Tray to the 5th Gen 4Runner. It easily installed using the 8 existing factory mounting points. Drilling is required to secure the front Foot Rails.

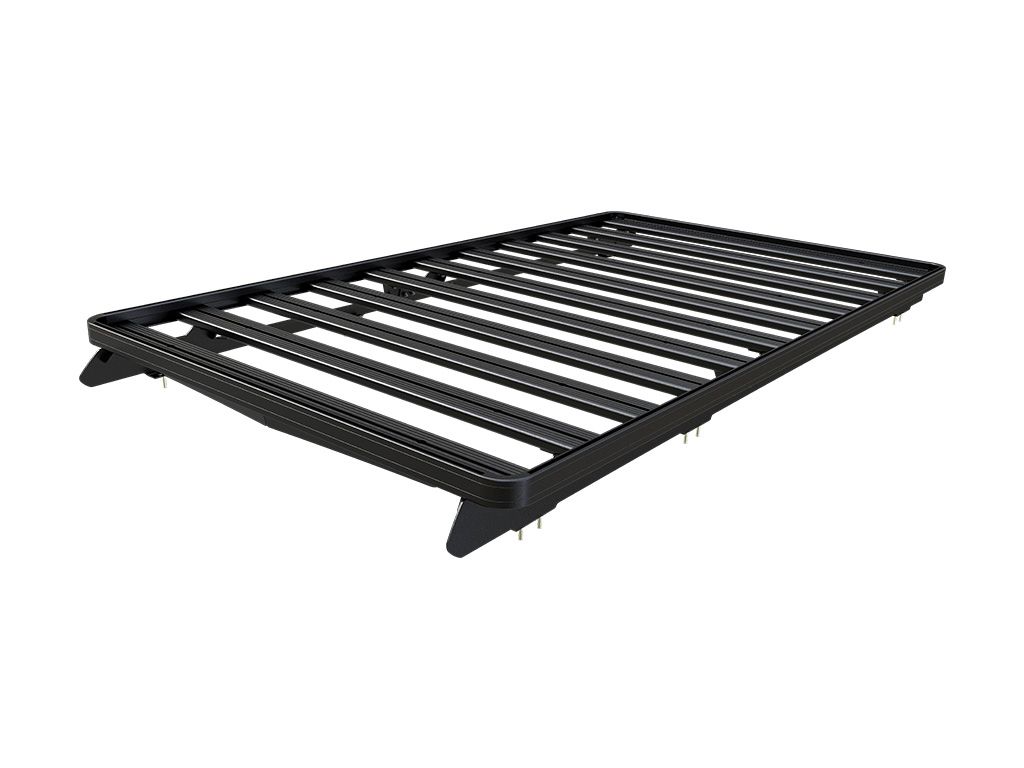

1 x FATF006 - Toyota 4runner (2009-Current) Full Rack Foot Rails - by Front Runner 1 x RRSTD11 - Slimline II Tray - 1255mm(W) X 2166mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium 3CR12Stainless Steel
Approximate Installed Weight 37kg (80lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
