Powerwerx - PanelPole2

Availability: Translation missing: en.general.icons.icon_check_circle icon Only 6 left!

Easily add Powerpole outputs to your dashboard, go-box, panel or chassis. Weather resistant rubber cover protects & seals connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (4) 30A contacts. Fits 1-1/8" dia. hole.

The only weather resistant panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to dual 45A) outputs on your dashboard, go-box, panel or chassis.

High Output Panel Mount

Includes (2) Anderson Powerpole connectors, each rated up to 45 amps continuous operation.

Weather Resistant Cover

Optional weather resistant rubber cover seals Powerpole connections when not in use.

Anderson Powerpole Connectors

Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.

Standard Mounting Hole

1 1/8" standard panel mounting hole compatible. Ideal for go-box, dashboard or chassis mounting.

Tech Specs

Connections Supplied with (2) Red/Black Powerpole Connectors. Customer may purchase alternate colored housings and change colors as needed.
Compatibility Mates with all 15, 30 & 45 amp Powerpole connectors
Maximum Voltage 58VDC
Maximum Amperage Up to 45A each Powerpole (continuous)
Mountable 1-1/8" diameter standard panel mounting hole.
Rear Housing Depth 7/8" (not including wiring)

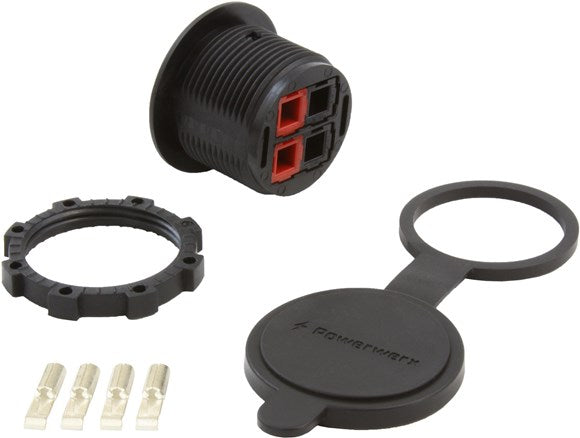

Includes Includes (2) Powerpole Red/Black housings, (4) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Rubber Weather Resistant Cover, (1) Threaded Locking Nut
