Redarc 120W Folding Solar Panel Kit

by Redarc
Sold out
$765.00
Availability: translation missing: en.general.icons.icon_check_circle icon Out of stock

Looking for an off-the-shelf portable folding solar panel kit for your auxiliary battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.

Folding out to 40.6" × 28.1" × 1.0" means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.

This ultralightweight, un-glazed panel ensures it is less fragile than many other folding solar panels and features an ETFE (ethylene tetrafluoroethylene) coating designed to protect the Monocrystalline solar cells from damage, as opposed to employing a traditional glass design like many other portable products.

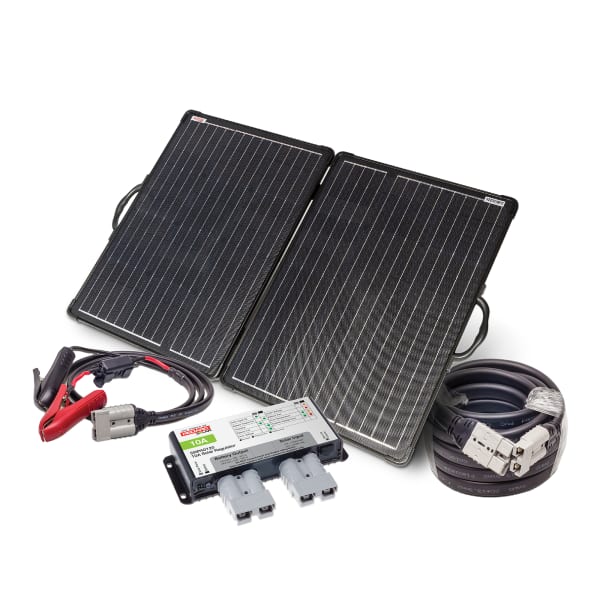

This kit includes;

- 120w folding solar panel

- 16FT anderson to anderson cable

- 5FT anderson to battery clip

- 10amp Solar Regulator



The Folding Solar Panels will feature genuine industry standard Anderson™ SB™ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.

Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.

Just need the panel? You can choose to simply buy the 120W folding panel if you already have the regulators and cables on-board.

Output Power 120W
Warranty 2 Years
Weight (lb) 13.9 lb
Construction Monocrystalline
Operating Temperature −40°F to +185°F
Peak Power 120 W (2 × 60 W)
Max Power Voltage 20.0 V
Frame Anodized aluminium
Max Power Current 6.0 A
Cable Length 1 ft

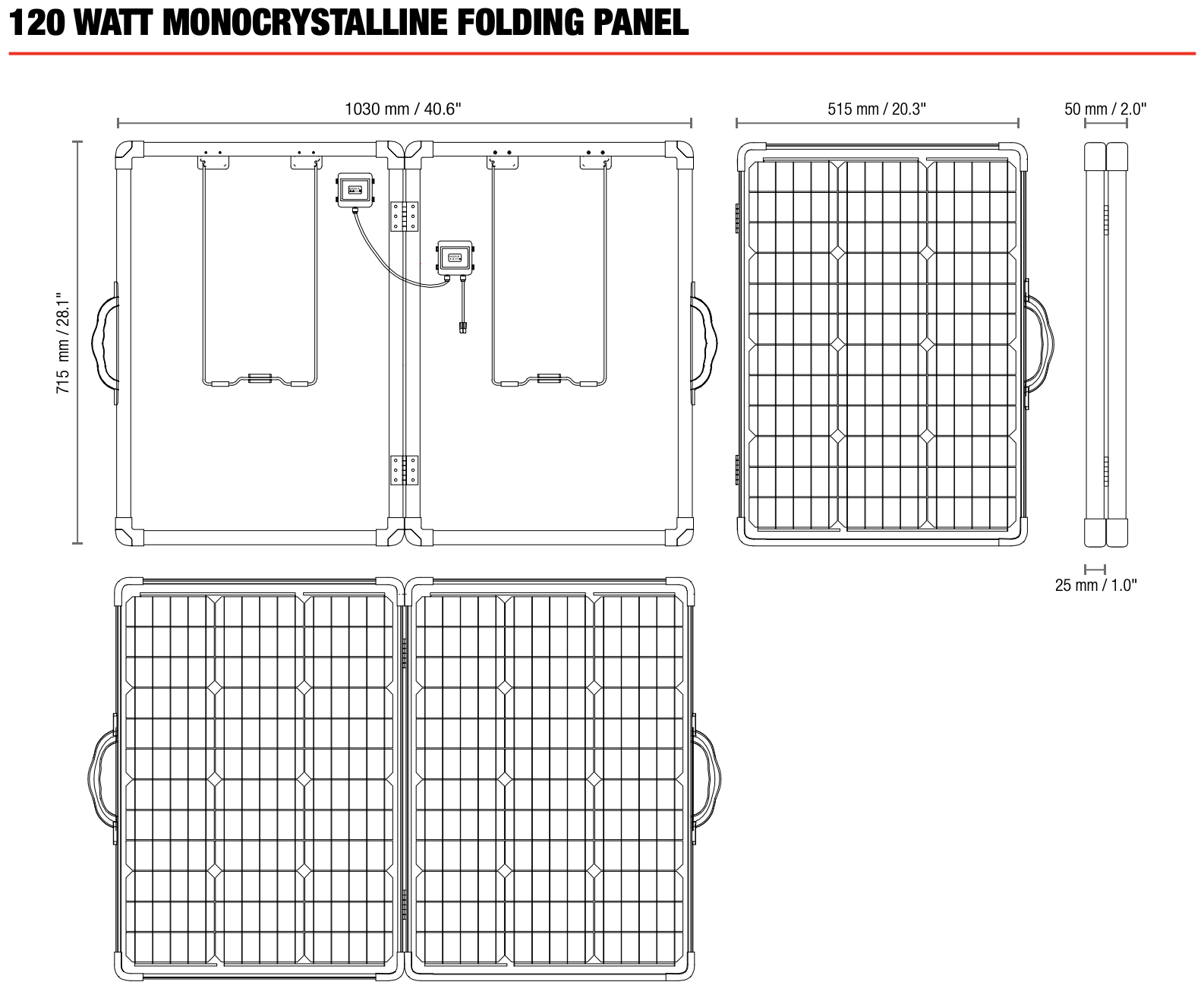

Dimensions (closed) 20.3 × 28.1 × 2.0"
Power Tolerance ±3%
Dimensions (open) 40.6" × 28.1" × 1.0"
Standard Test Conditions AM1.5 1000 W/m2 77°F
Conversion Efficiency 20.6%
