Redarc 200W Folding Solar Panel Kit

by Redarc
Sold out
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

Looking for a complete portable folding solar panel kit for your dual battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.

Folding out to 53.9" × 31.5" × 1.0" means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.

This kit includes an ETFE (ethylene tetrafluoroethylene) coating folding solar panel, as well as the regular, cables and accessories you need to take off and stay charged.

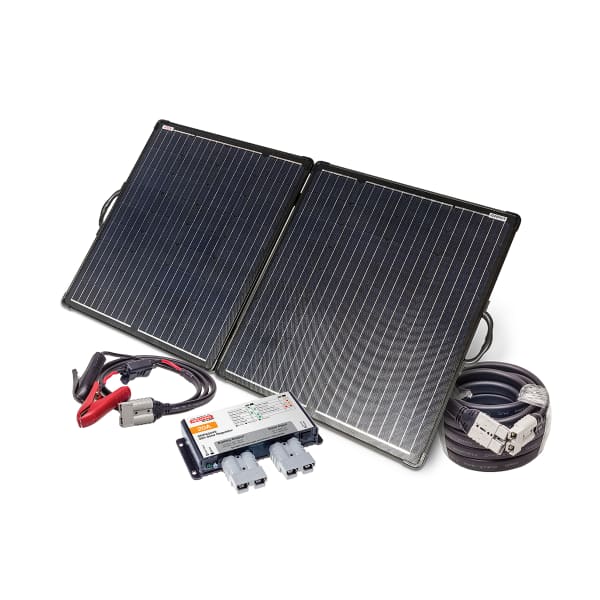

This kit includes;

- 200w folding solar panel

- 16FT anderson to anderson cable

- 5FT anderson to battery clip

- 20amp Solar Regulator


The Folding Solar Panels will feature genuine industry standard Anderson™ SB™ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.

Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.

Just need the panel? You can choose to simply buy the 200W folding panel if you already have the regulators and cables on-board.

Warranty 2 Years
Weight (lb) 20.9 lb
Operating Temperature −40°F to +185°F
Peak Power 200 W (2 × 100 W)
Max Power Voltage 20.0 V
Frame Anodized aluminium
Max Power Current 10.0 A
Cable Length 1 ft
Connection Type 50 A Anderson
Short Circuit Current 10.8 A
Dimensions (closed) 27.0 × 31.5 × 2.0"
Power Tolerance ±3%
Dimensions (open) 53.9" × 31.5" × 1.0"
Standard Test Conditions AM1.5 1000 W/m2 77°F
Conversion Efficiency 21.8%
