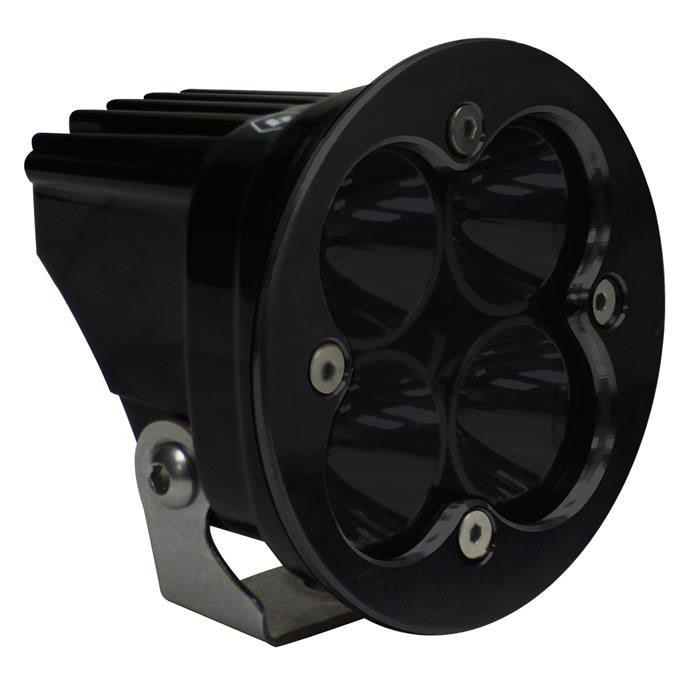

Squadron-R Pro, 850nm IR LED Driving


Although compact at 3 by 3, dont be fooled by its size, the Squadron Pro IR 850nm LED light is more powerful than most larger lights on the market today. The Squadron Pro IR 850nm LED light is different from other 850nm lights due to the fact that we offer a high/low capability for the Squadron Pro IR. This feature allows the lights already low visible signature to be reduced even further in low mode and provides clearer visibility in the field for far distances while driving at high speeds in high mode. Baja Designs Features: Satisfactions Guarantee 30 Day Money Back Guarantee Limited Lifetime Warranty Complete Purchase Protection uService Replaceable Lenses And Optics ClearView All The Light, Right Where You Need It. MoistureBlock Waterproof, Rain Proof, Submersible CopperDrive Only LED Driven At 100% Specifications: LED:4 Osram 850nm SFH4515AS LEDs High Output Mode:3600mW/sr, (8000mW) Low Output Mode:900mW/sr, (2000mW) Weight:12 ounces Wattage/Amps/Volts:26W, 1.88A at 13.8Vdc, .94A at 27.6 Vdc Dimensions:3.07 x 2.76 x 3.07 LED Life Expectancy:49,930 Hours Front Lens:Hard Coated Polycarbonate Housing:Aircraft Grade Aluminum w/Mil-Spec Hard Anodize Bezel:Billet Machined Aluminum Hardware Bracket Material:Stainless Steel Built-In Overvoltage Protection Exceeds MIL-STD810G (Mil-Spec Testing) IP69K (Waterproof up to 9ft Pressure Washable) IK10 Compliant (Mechanical Impact Testing) Includes: Squadron Pro, 850nm IR LED Light Mounting Bracket
