Squadron-R Sport, Pair Wide Cornering, Amber
Two is better than one, right? We think so, which is why we're offering a pair of Squadron-R Sport LED auxiliary lights with a wiring harness. Similar to the Squadron Sport, the Squadron-R Sport off-road lights produce 3,150 lumens of pure power to light up the trail on your nighttime off-roading excursions! The Squadron-R Sport has been designed for customers looking for LED performance with more traditional styling. The Squadron-R Sport lights can cut through fog and dust conditions to keep you safe with enhanced visibility, and along with our amber-colored lens that cuts through dust/inclement conditions that are also easy on the eyes.
Our LED bulbs offer nearly 50,000 hours of performance and are designed to withstand the elements with a fully submersible, waterproof housing. Our unique O-ring seal protects the sensitive components in your lighting while making a lens change easy without professional help. That means you can replace a damaged bulb or adjust your lighting pattern even when you’re on the trail.
The Squadron-R Sport has been designed to easily fit stock or aftermarket bumpers with a four-inch round hole. This kit comes with a pair of lights, wiring harness, and mounting brackets. All our lights are backed with a 30-Day Satisfaction Guarantee and Limited Lifetime Warranty to ensure you get what you paid for.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A

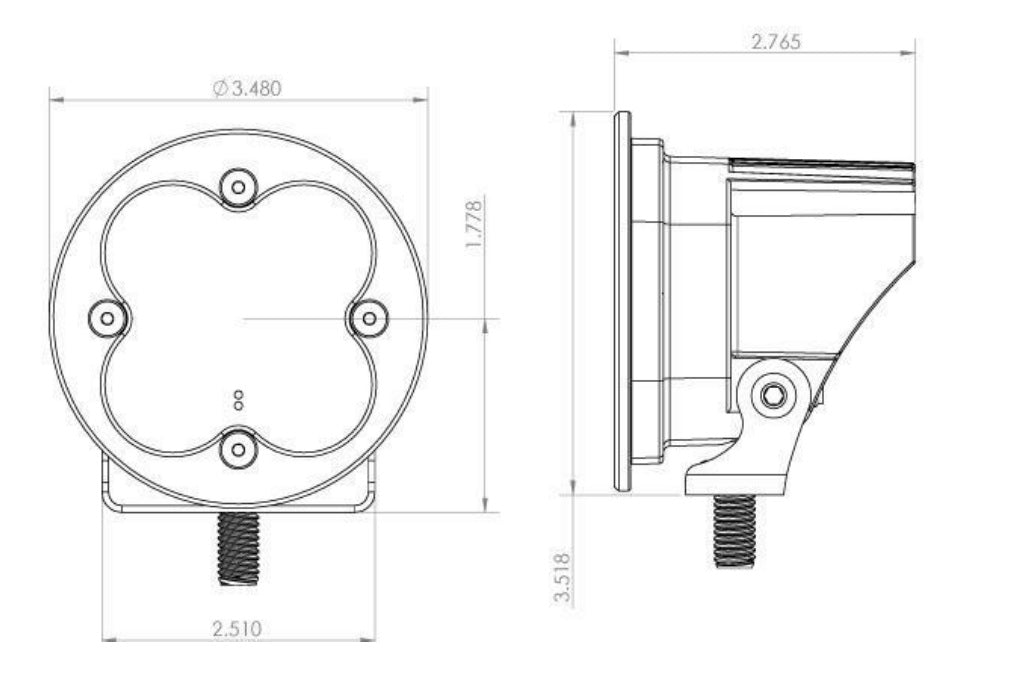

Dimensions: 3.5" x 2.77" x 3.5"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
- x2 Squadron-R Sport LED Light
- Mounting Bracket
- Wiring Harness
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
