RAM® Ball Adapter with AMPS Plate

Sold out
$8.99
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

FEATURES

  • 2" x 1.7" square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

OVERVIEW

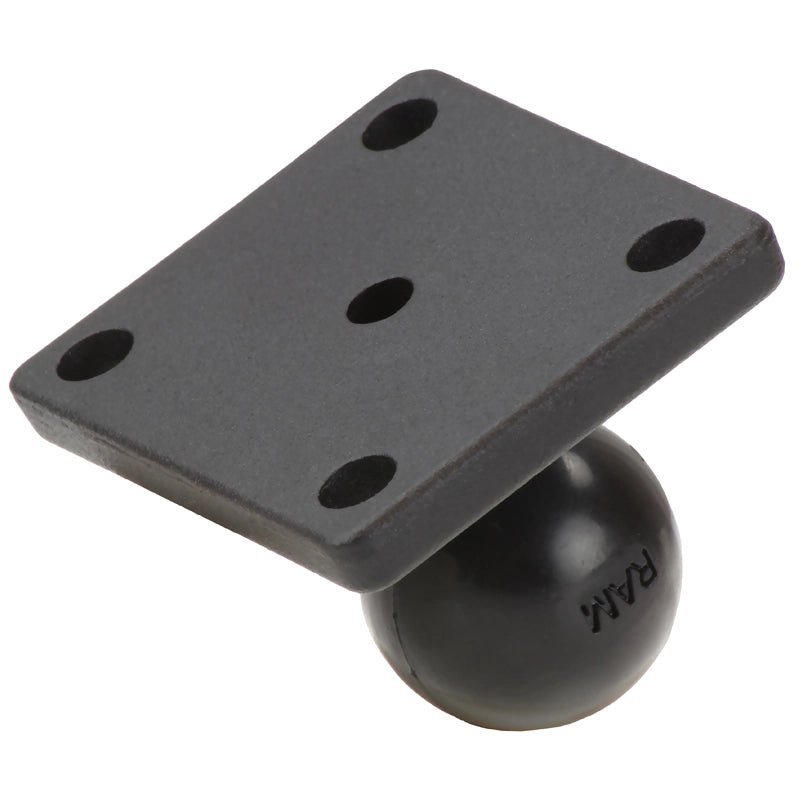

The RAM-B-347U base consists of a B size 1" diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.

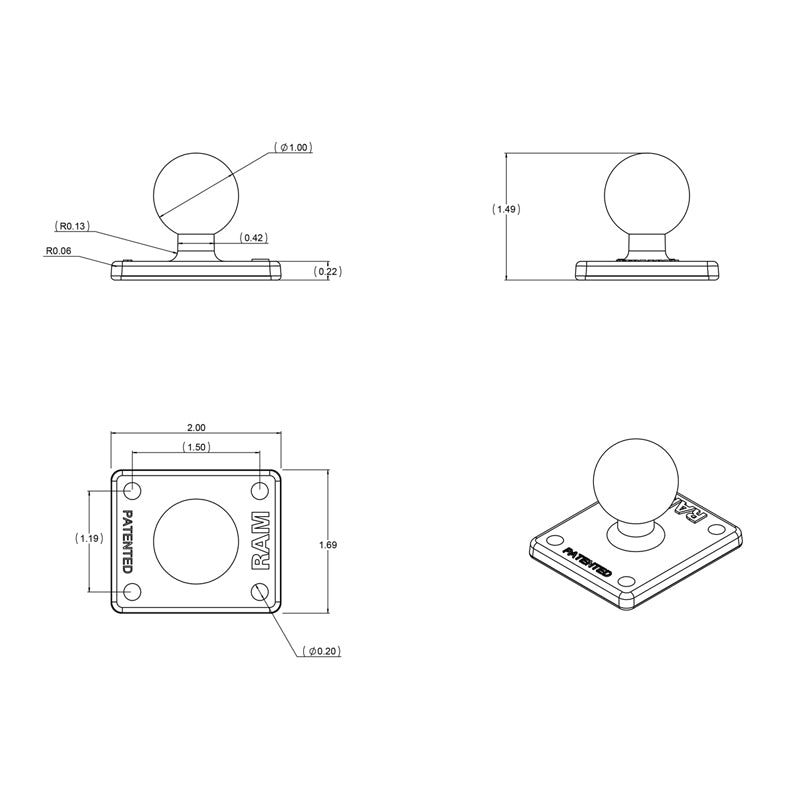

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

THREAD PITCH

1/4"-20

PLATE SIZE

2" X 1.7"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.15 lbs.
