4thD 170 Watt Portable Solar Panel with Merlin Grid

Sold out
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

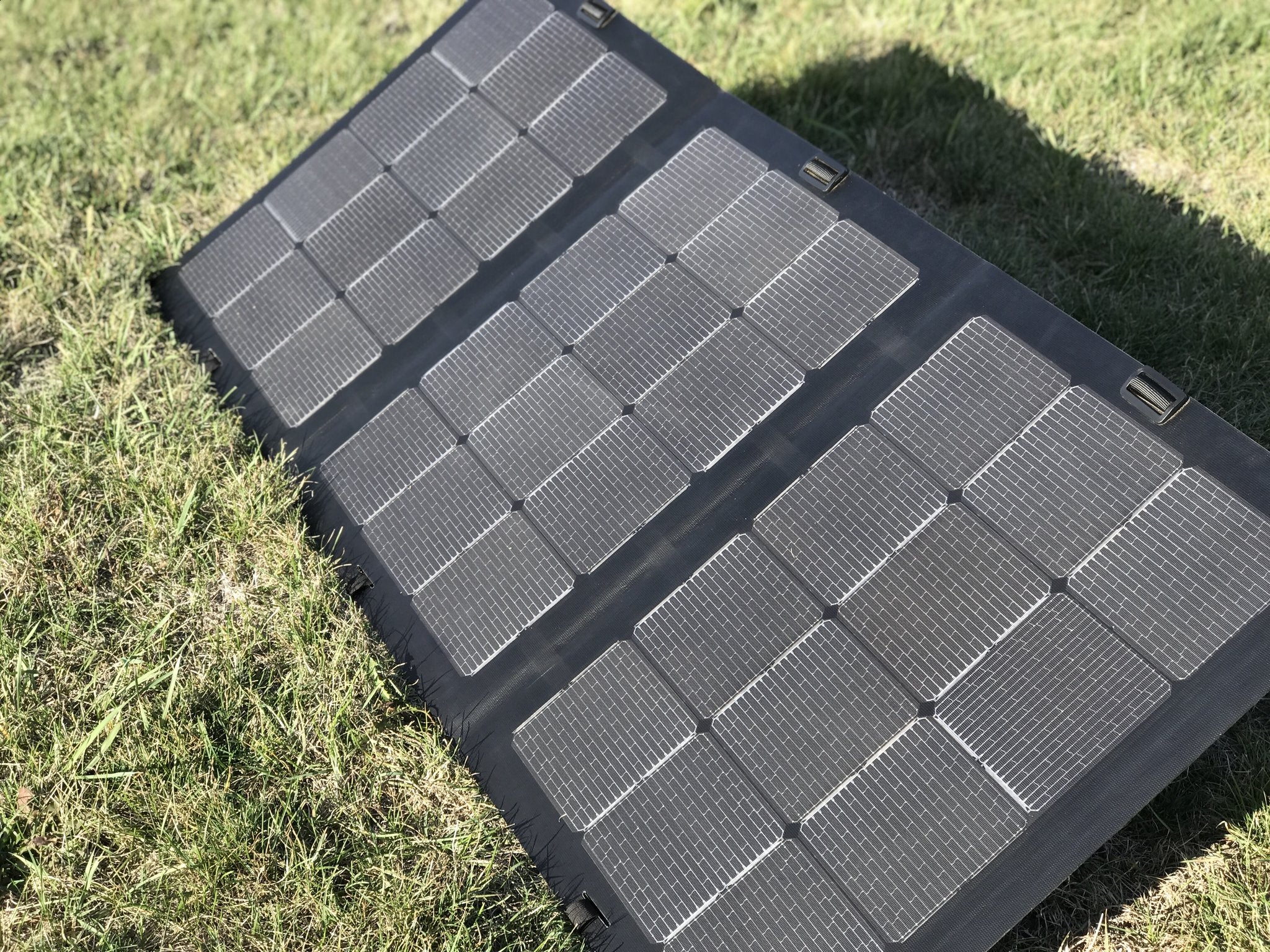

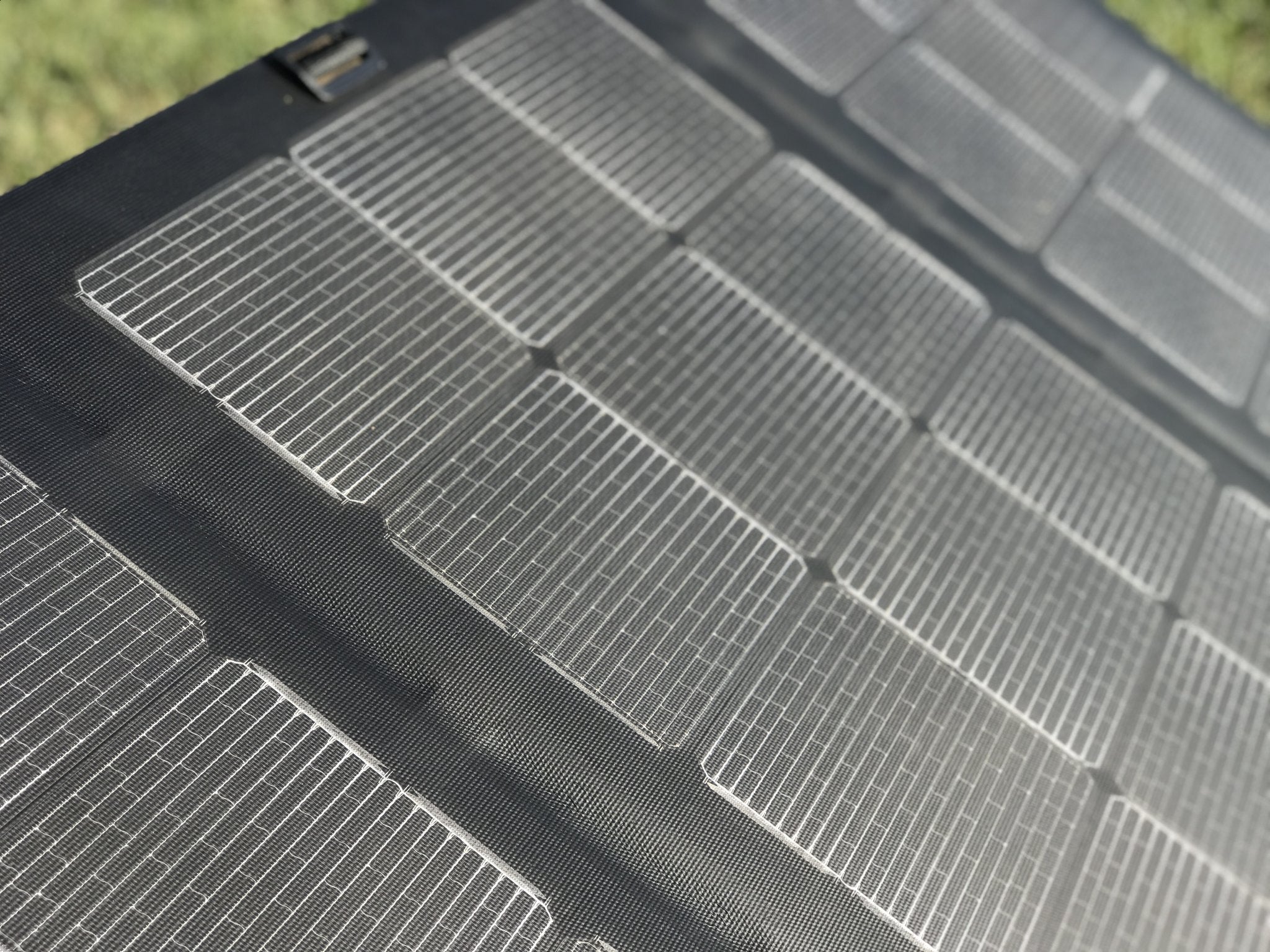

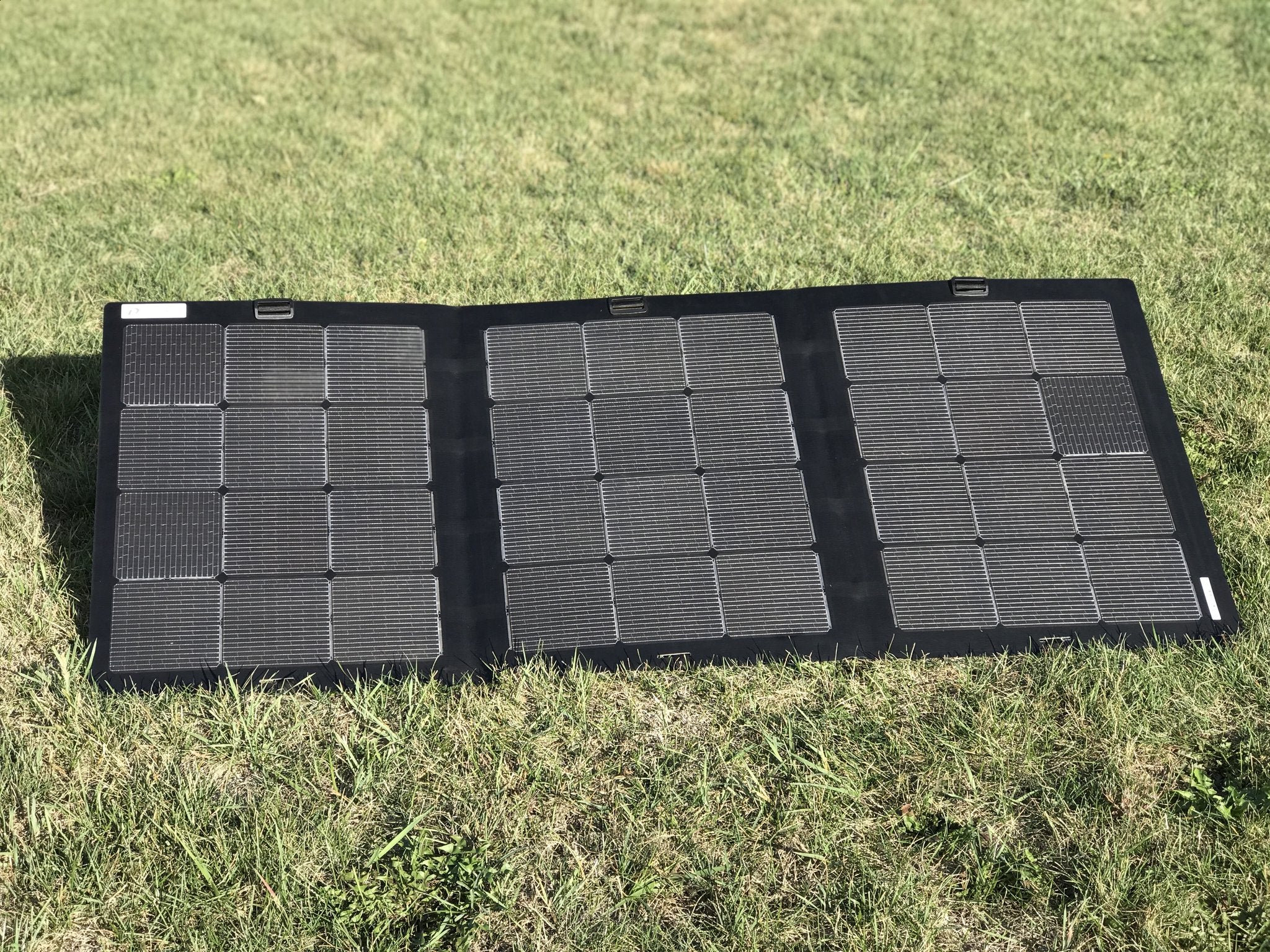

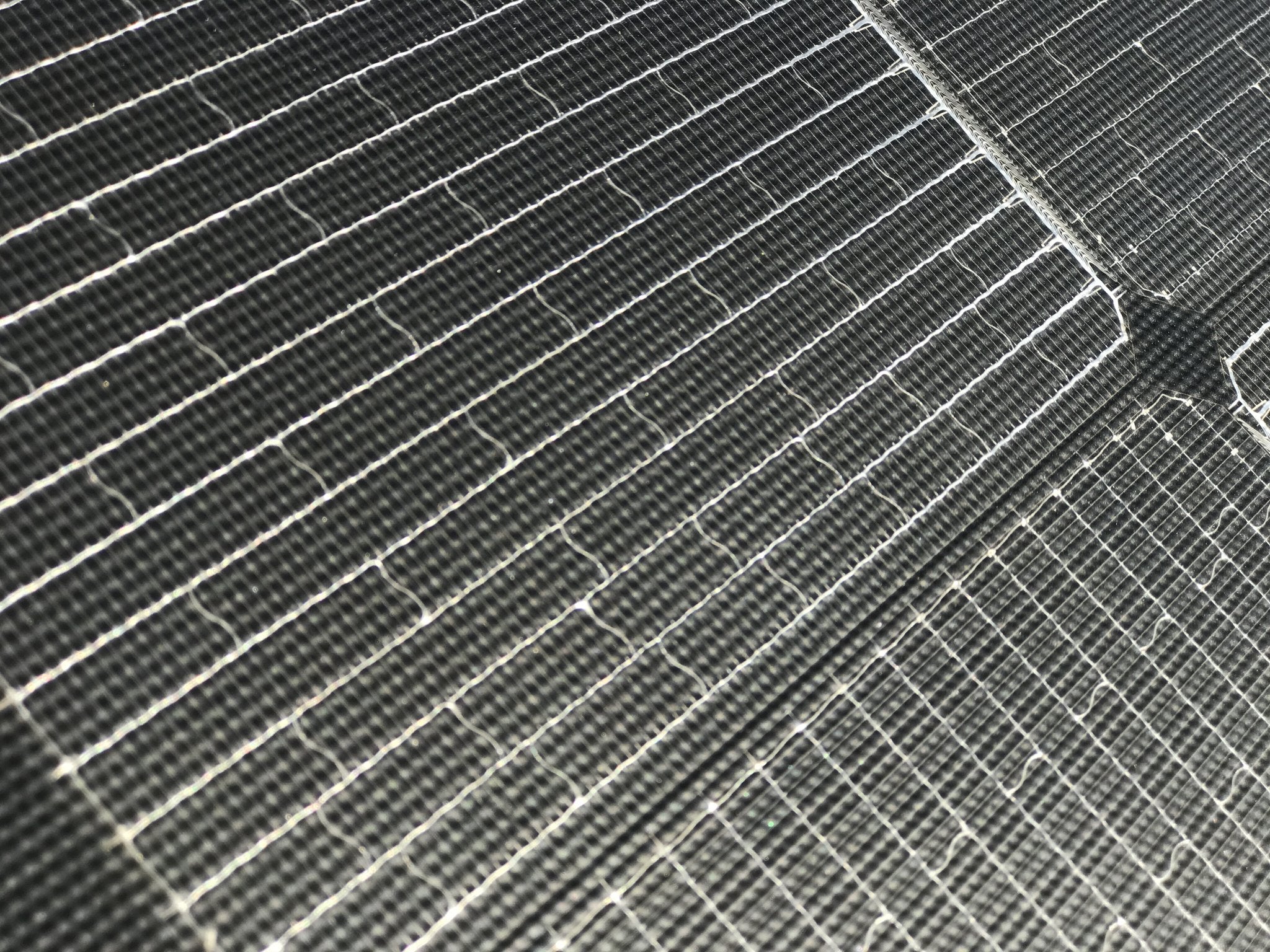

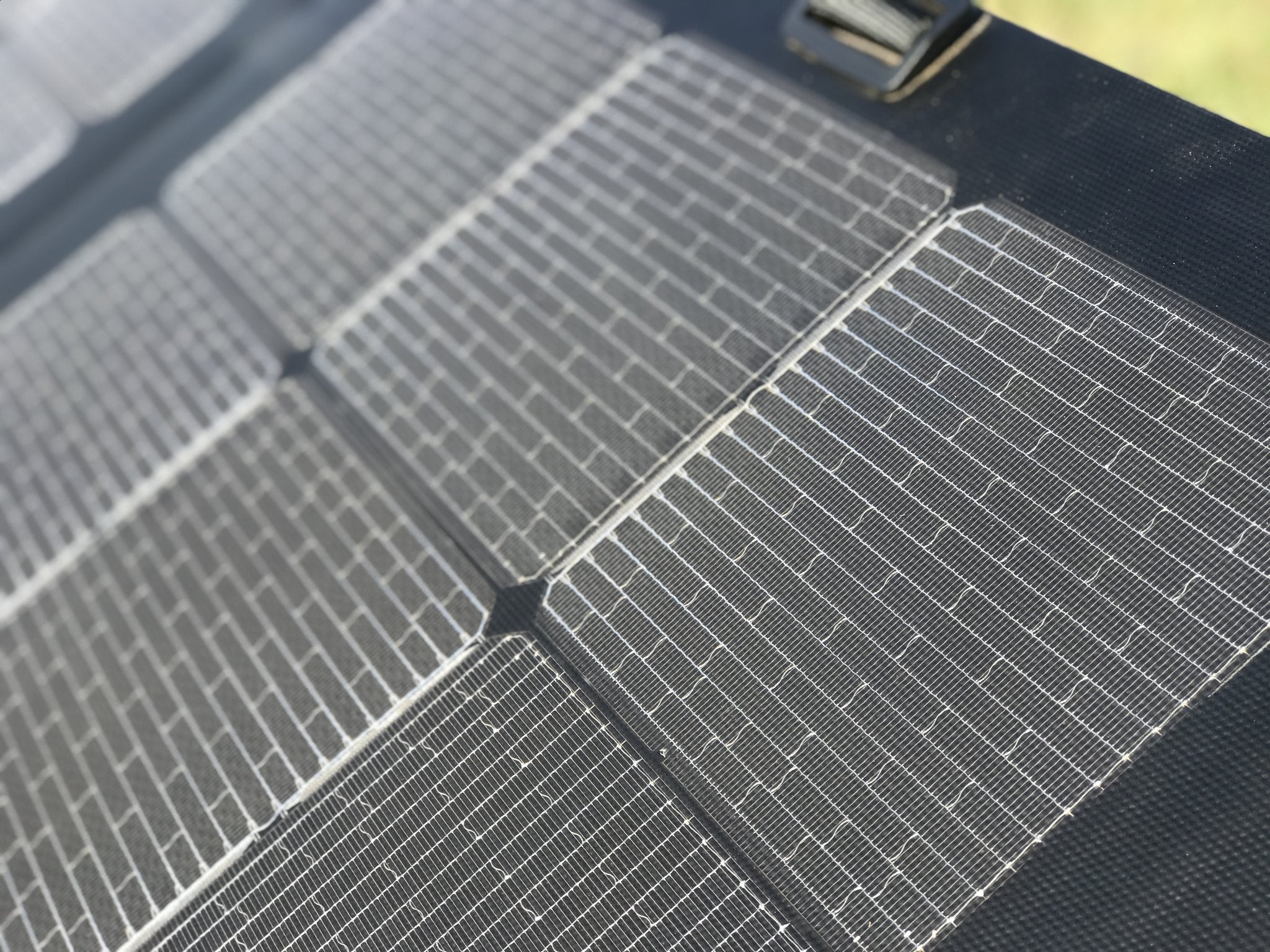

170 Watts. This semi flexible solar panel incorporates Tri-Fold Merlin patented MST technology for market leading durability and output.  Connector ends are Andersen SB50


  • Lightweight, more than 50% lighter than aluminum framed panels
  • 10 second setup and take down time
  • Waterproof

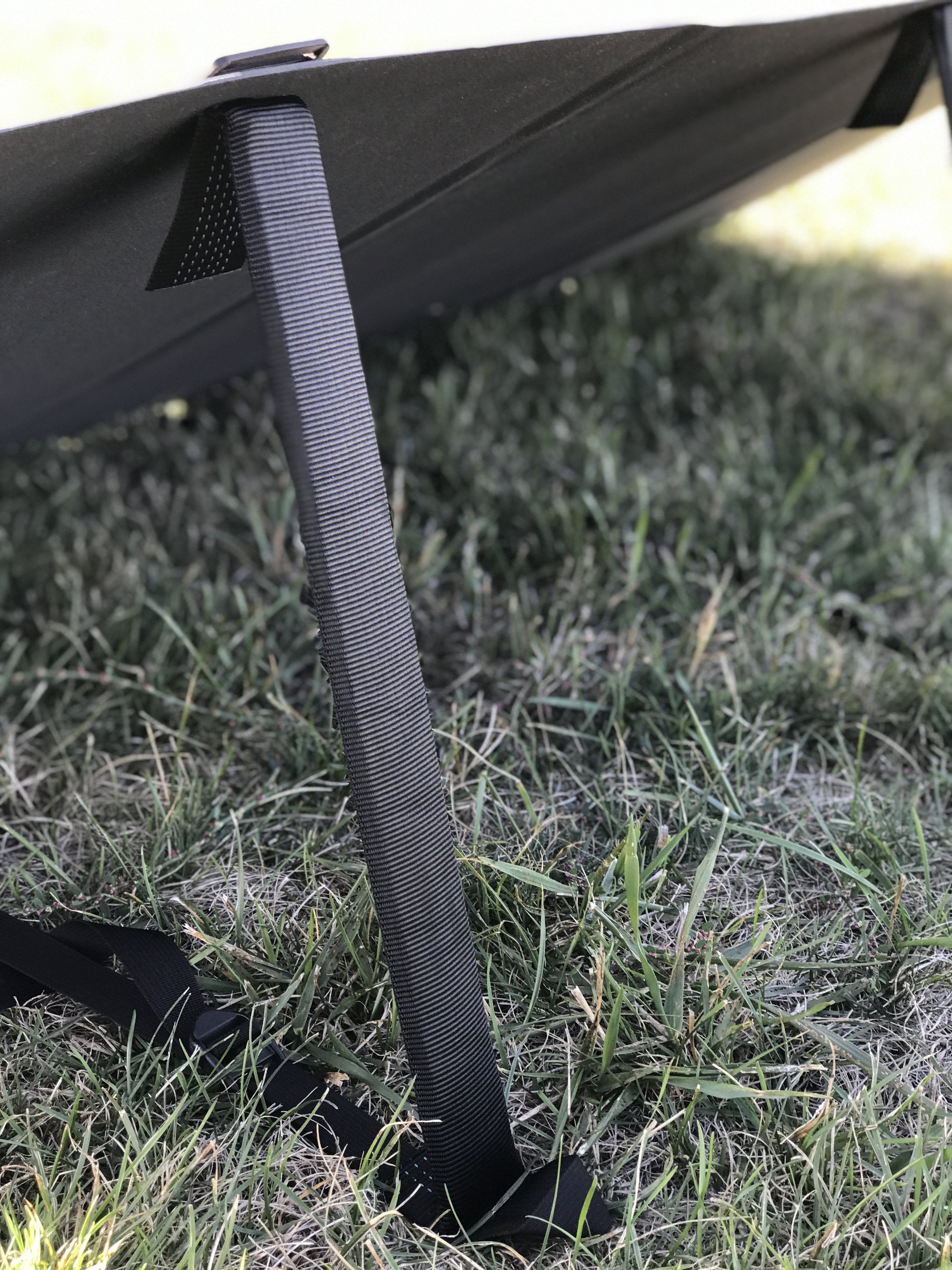

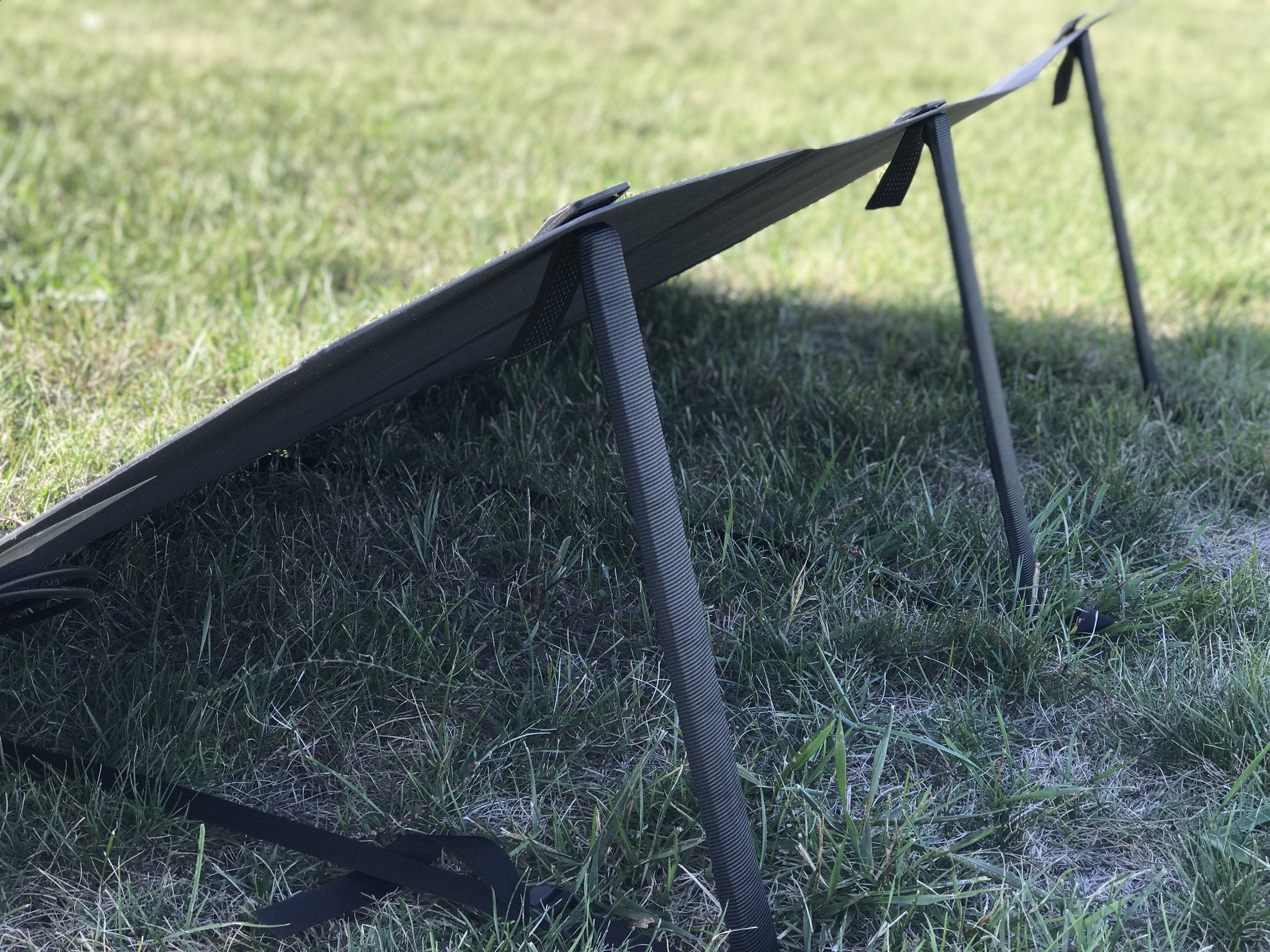

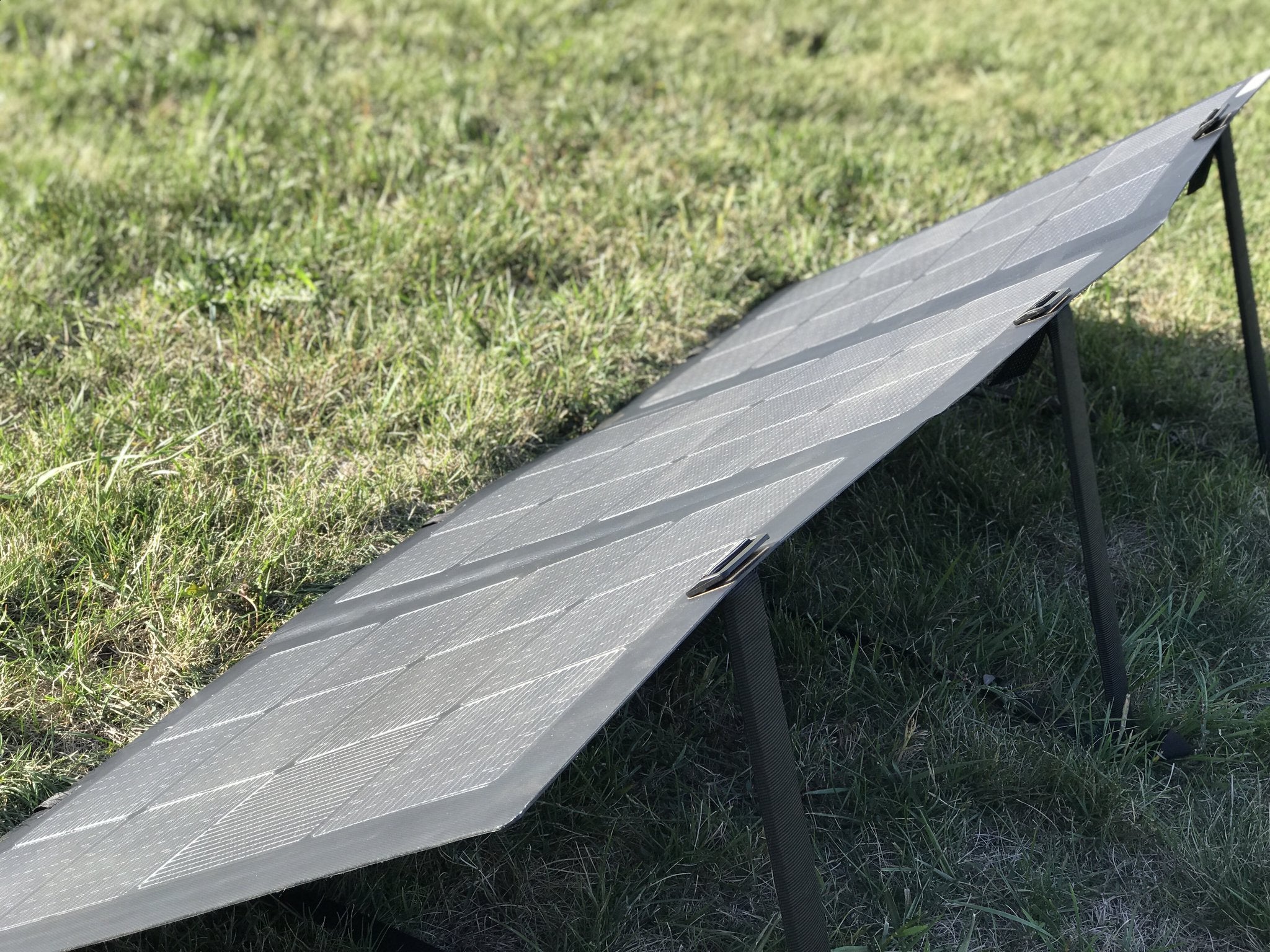

  • Adjustable legs from 0° to 36°.  Allow you to get the correct angle to the sun from Miami to Washington state, spring, summer, fall.

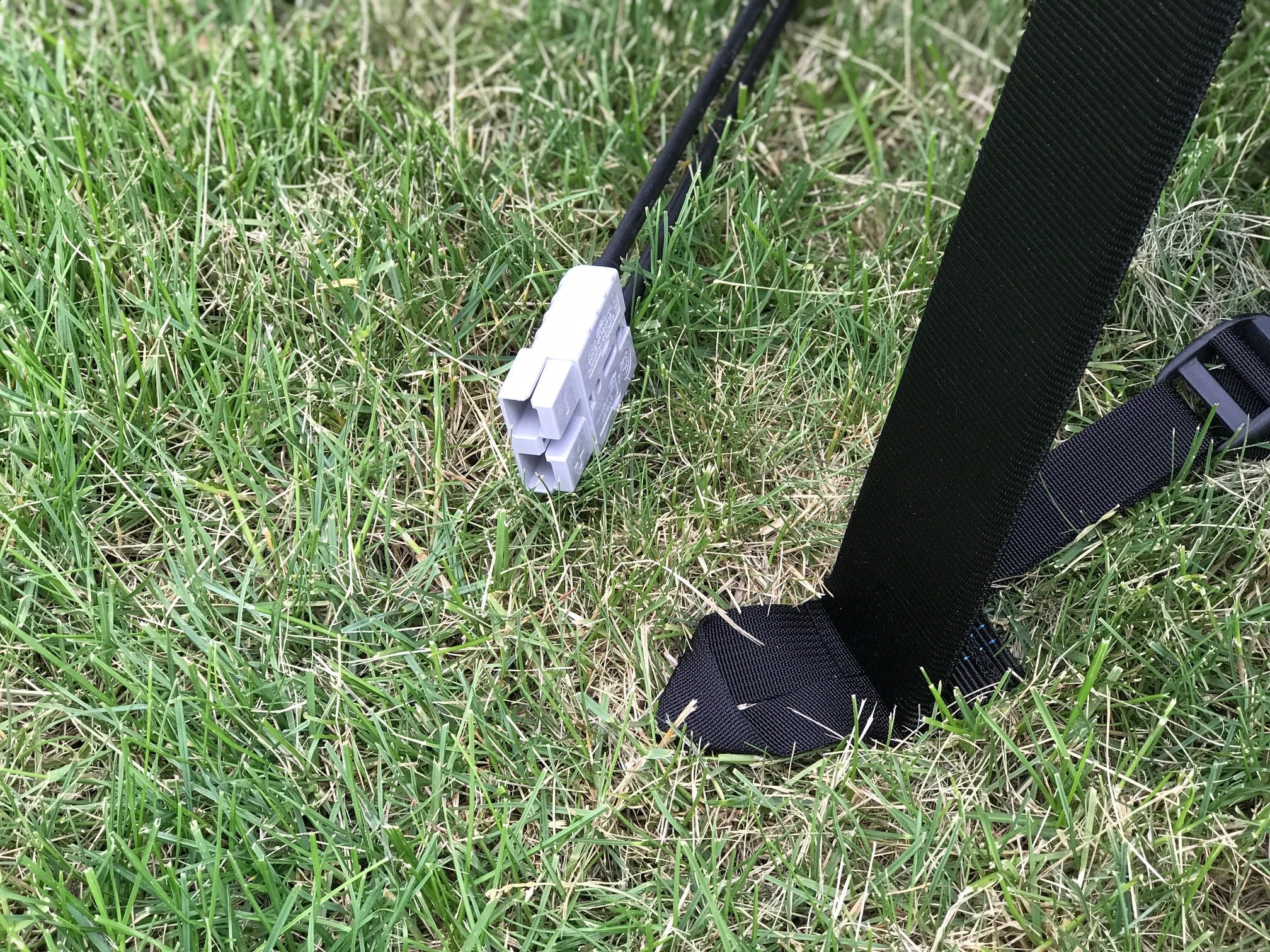

  • Rugged Andersen SB50 connector
MODEL: XP170 Weight: 5.5 Kg
WATTS: 170 12.1 Lbs


  W L H1 H2

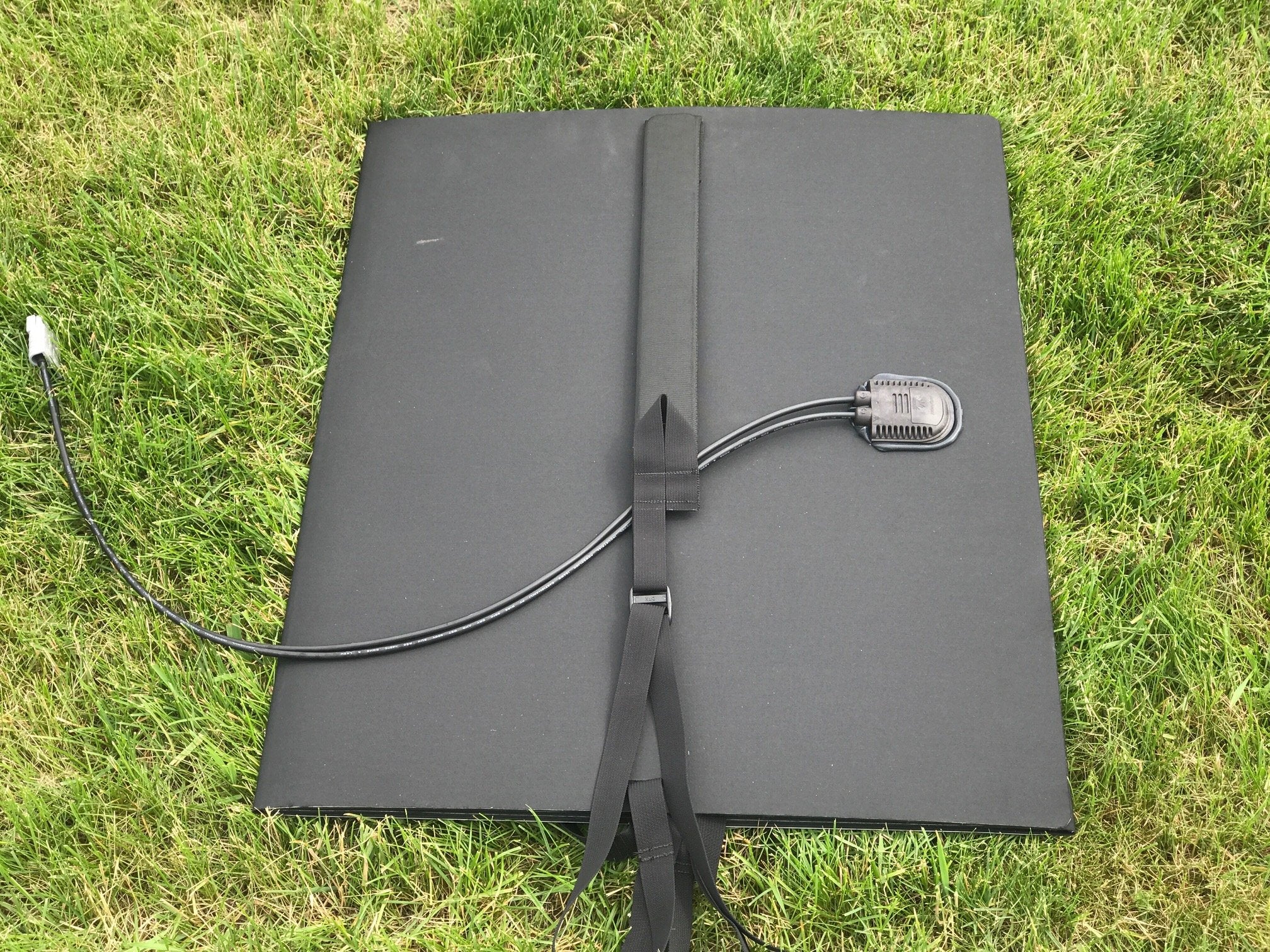

Closed 28 23 3/16 13/16

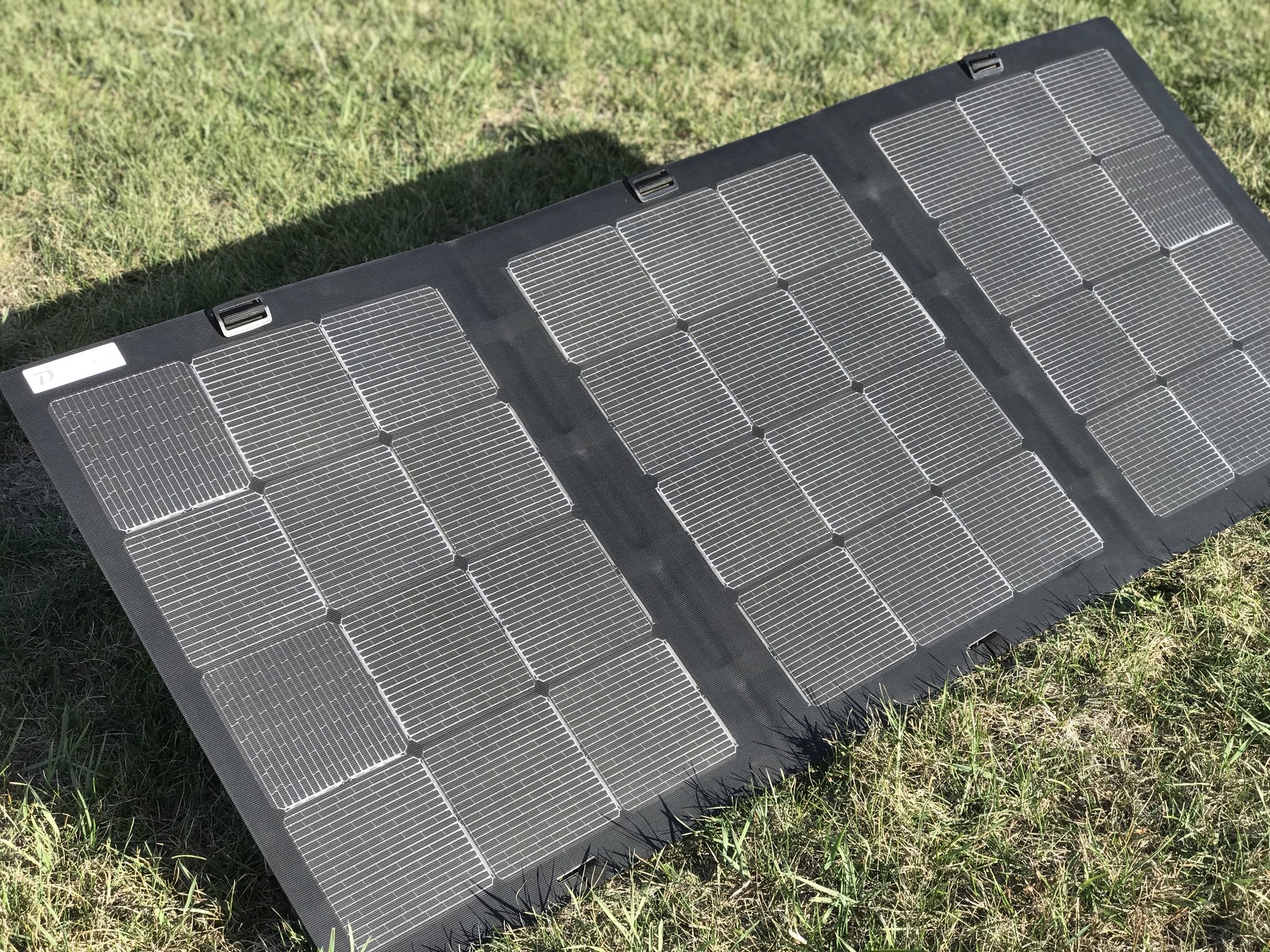

Open 28    68     3/16  13/16



Cell Type Mono
Number in Series 36
Rated Power (Pmax) 170 Watts
Voltage Pmax 19.22 Vdc
Current Imp 8.84 Amps

23.89 Vdc

Isc 9.16 Amps
Active Area Efficiency 19.56%
